Cycjet Lf30f Laser Marking Machine for PVC/PPR/HDPE Pipe

Basic Info.

Model NO.	LF30F
Type	Optical Fiber Laser Marking Machine
Marking Method	Scanning Marking
Cooling	Air
Marking Range	110 mm X 110 mm (Can Be Customized)
Pulse Frequency	20 kHz - 100 kHz
System Language	English
Name	Fly Laser Marking Machine
Transport Package	Wooden Case with Foam
Specification	147X66X67cm
Trademark	CYCJET
Origin	Shanghai
HS Code	8456110090
Production Capacity	300units/Month

Product Description

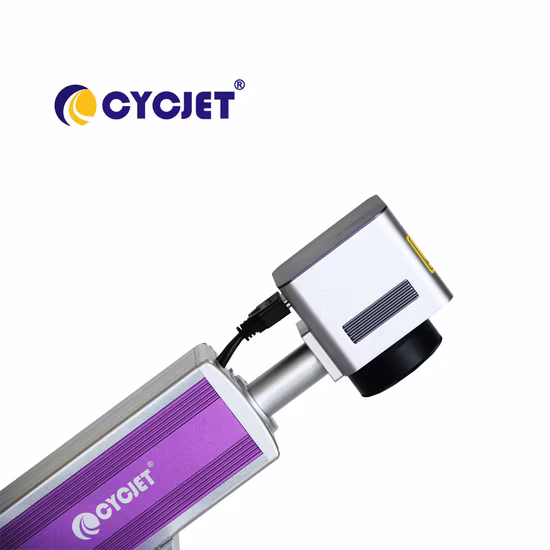

Product Picture:

Components of Machine:

Application Scope:

Suitable for electronic components, electrical products, IT industry, auto parts, hardware tools products, precision instruments, gift accessories, medical equipment and other high-end products of precision, fine logo printing. Typical applications such as, plastic (PA66) insulation flying laser marking, metal plate laser marking, packing box body online laser marking, etc.
Advantage:
1, Perfect design software, easy to learn and operation
2, Less Mechanical Faliure
3, Operation Status: Fly and Standstill
4, The PVC, PPR,PE Pipe Code will change color after mark,the demonstration of effects is better than ink priter.
5, The code can not move or erase it
6, No consumer goods, less production cost
Terms of Payment:
T/T, LC
After-sale Service
1, Warranty Valid: 12 Month
2, Online or Spot Training
Details and Specifications:

Specifications

Output Power: 30W Beam quality M2: <2 Laser wavelength: 1064 nm Air cooling Pulse frequency: 20 KHZ - 100 KHZ Marking range: 110 mm x 110 mm (can be customized) MarkingSpeed:7000mm/s Marking Depth: ≤0.3mm Marking Line Width: 0.01-0.2mm (based on difference material) Min character Size: 0.015mm. Repeat accuracy: + / - 0.003 mm Marking area locating: Red-light locating system. Power supply: AC 100-260 v 50/60 hz Power: ≤800W

Delivery&Package

Delivery Time: 3-7 days after received Advance Payment By Vessel or Air Plane Standard Package: Wood Carton, Carton Box
