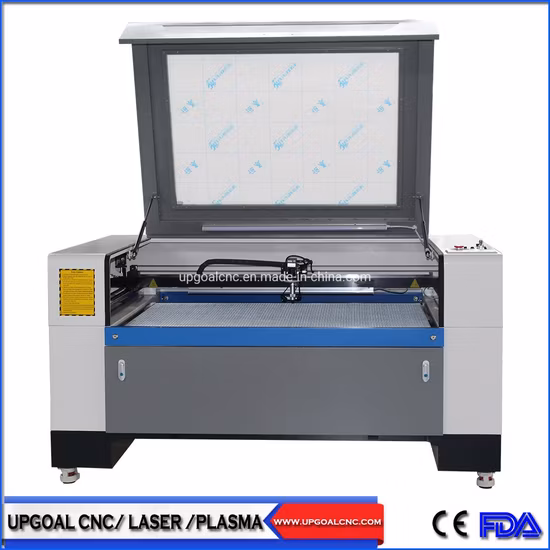

CCD Camera CO2 Laser Cutter Machine for Printed Label/Woven Label

Basic Info.

Laser Classification	Gaseous Laser
Laser Technology	Laser Flame Cutting
Tube Brand	Efr/Reci/Yongli/Slw
Laser Power	150W
Package	Water-Proof Film and Plywood
Chiller	Cw5200
Motor	Stepper
Rail	Taiwan PMI/Hiwin/Shac
Controller	Ruida/Topwisdom/Anywells
Transport Package	Plywood
Specification	1600*1000mm
Trademark	Eastrise
Origin	Jinan, China
HS Code	8456110090
Production Capacity	5000 Sets/Year

Product Description

CCD Camera CO2 Laser Cutter Machine for Printed Label/Woven Label

Advantage

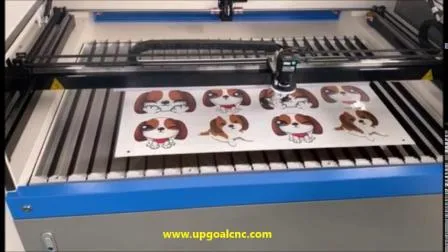

1. Adopt advanced recognition systems, through visual identification system putting the images into computer, identify automatically and located cutting correctly and fast, greatly reduces the material and the waste of time.2. Fast continuous cutting function based on the powerful date processing ability of high-end DSP technology, professional camera recognition software, and the coordination between precision mechanical components, guaranteed the procision, high speed cutting.3. Fast curvilinear cutting function, it can cut via any curve fast continuous cutting, the laser heads move in beautiful arc just evoke industry needs.4. To fully support design software, such as CAD, CORELDRAW, PHOTOSHOP, friendly man-machine interface, live close to the industry needs.

Application

It is used in the industries, such as large area digital printing, embroidering, car seat cushion, cloth toy, umbrella, wedding dress, model, handicraft, advertisement decoration, packing and printing, garment, leather, electronics, paper product, etc.Applicable materails

Non-metallic materials, such as wooden ware, paper, leather, cloth, organic glass, epoxy resin, acrylic, woolens, plastic, etc.

Technical parameters

NO.	Description	Parameter
1	Engraving area	1600*1000mm
2	Laser power	150w
3	Cutting speed	0-36000mm/min
4	Cutting speed	Difference material difference speed
5	Resolution ratio	0.05mm
6	Power supply	220V±10%/10A, single phase
7	Positioning speed	20m/min
9	Gross Power	1.6Kw
10	Operating temperature	0-45ºC
11	Operating humidity	5-80%(free of condensed water)
12	Graphic format supported	BMP,JGP,PNG,DXF,AI,PLT etc.
13	Dimensions(mm)	2000*1300*1100mm

MachiningExhibitionCertificates

FAQ

1.How long is your machine's warranty?

3 years

2.How about your after-sales service ?

Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock.

3.How can we install the machine?

English version manual and operation video CD disk.

4.How about the payment terms?

30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, Paypal

5.How about package of shipment?

Inner packing:water-proof filmOutter packing:plywood caseBottom:strong steel tubeContact Information
